                    Wire Mesh Panel Welding Machine

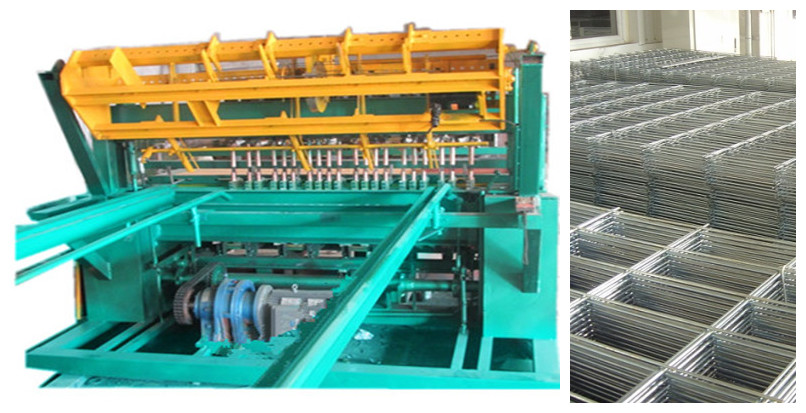

Wire Mesh Panel Welding Machine-WMP2500

Wire dimater
2.0-5.0mm
Welding speed
15-30 times/min
Rated voltage
380V/50HZ
Mesh Opening
25*50-100*150mm
Power
85KVA*6
Overall dimension
 8000*3500*1400 mm
Width of mesh
2500mm
Machine weight
4500KGS
Fuction & Charactors:
l         WWM2500 Welded Wire Fence Machine adopts synchronous control technology. Welding time and Welding of branch console is controlled by PLC system.
l         Input panel is touch screen or keypad screen, which enable the machine more intelligent and reasonable.
l         It can compress the wire tightly one time, and weld seperately.
l         The most important feature is that it can weled the mesh with different distance on weft wire
l         It adopts the most advanced welding transformer. It ranks 8 grades,which enlarge the wire range.
l         Eays to operate, Lower noisy, more efficient.

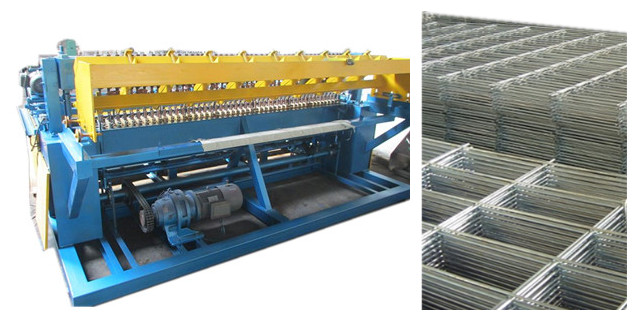

Wire Mesh Panel Welding Machine-WMP2000

Wire dimater
3.0-8.0mm
Welding speed
30-50times/min
Rated voltage
380V/50HZ
Number of warp
21
Power
150KVA * 4
Overall dimension
 8000*3000*1400 mm
Width of mesh
2000mm
Machine weight
3500KGS
Function& Characteritics
l         WWM2000 Welded Wire Fence Machine adopts synchronous control technology. Welding time and Welding of branch console is controlled by PLC system.
l         Input panel is touch screen or keypad screen, which enable the machine more intelligent and reasonable.
l         It can compress the wire tightly one time, and weld seperately.
l         The most important feature is that it can weled the mesh with different distance on weft wire
l         It adopts the most advanced welding transformer. It ranks 8 grades,which enlarge the wire range.
l         Eays to operate, Lower noisy, more efficient.
