Welded Wire Mesh Machine
|

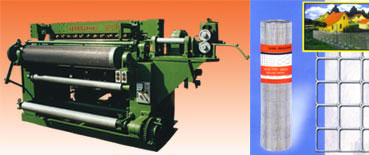

L-DHW4 Welded Wire Mesh Machine |
Chracter: Box-style support, high stability, lower noise, E-Machine in
one, straightening & sending wire automatically, Used for welded wire mesh 1/2"-4". |
|
|
|
Mesh Opening Size (mm) |
12.7-101.6 (1/2"-4") |
|
Weaving Width (mm) |
914.4-1219.2 (12"-48") |
|
Diameter of wire (mm) |
Ø0.63-Ø2 (BWG23-BWG14) |
|
Max. roll Length (mm) |
120 (400") |
|
Welding speed (mesh/minute) |
65 (radial) |
|
Power |
380/220V
50-60HZ
50KWA x 4 |
|
Machine Measurements (mm) |
2600X1700X1350 |
|
|

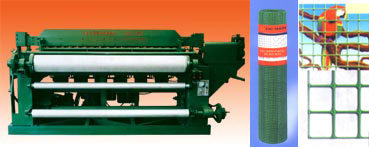

L-DHW6 Welded Wire Mesh Machine |
Character: Big Box-style support,high stability,lower noise,E-Machine in one,straighten&send wire automatically,Used for welded wire mesh of big wedth & wire dia.
|
|
|
Mesh Opening Size(mm) |
25.4-152.4(1"-6") |
|
Weaving Width(mm) |
1219.2 1524 1828.8(48" 60" 72") |
|
Diameter of wire(mm) |
Ø1.07-Ø2.00(BWG19-BWG14) |
|
Max. roll Length |
91.4 m (300") |
|
Welding speed
(mesh/minute) |
45
(radial) |
|
power |
380/220V
50-60HZ
50KWA x 6 |
|
Machine Measurements (mm) |
3350 x 1800 x1400 | |
|
|
|

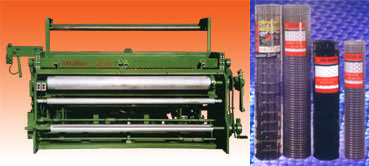

J-DHW4 Welded Wire Mesh Machine |
Character: Shuttle sending weft wire type,sending quicker,lower noise,more stable,save electricity.Used for welding net of wire Ø0.45-Ø1.07,mesh 1/4"-1/2".
|
|
|
Mesh Opening Size(mm) |
6.35-12.7 (1/4"-1/2") |
|
Weaving Width (mm) |
914.4-1219.2 (12"-48") |
|
Diameter of wire (mm) |
Ø0.45-Ø1.07 (BWG25-BWG19) |
|
Max. roll Length (mm) |
120m (400") |
|
Welding speed (mesh/minute) |
75 (radial) |
|
power |
380/220V
50-60HZ
50KWA x 4 |
|
Machine Measurements (mm) |
2350 x1820 x 1700 | |
|

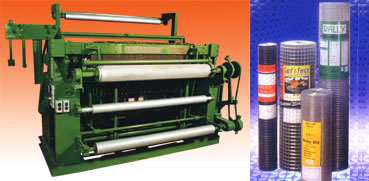

J-DHW6 Welded Wire Mesh Machine |
|
Character: Shuttle sending weft wire type,sending quicker,lower noise,more stable,save electricity.Used for welding net of big width Ø0.7-Ø1.07,mesh 1/4"-1/2". |
|
|
|
size of mesh (mm) |
6.35-12.7 (1/4"-1/2") |
|
Weaving Width (mm) |
1219.2-1828.8 (48"-60") |
|
Diameter of wire (mm) |
Ø0.74-Ø1.07 (BWG22-BWG19) |
|
Max. roll Length (mm) |
120 m (400") |
|
Welding speed (mesh/minute) |
48 (radial) |
|
power |
380/220V
50-60HZ
50KWA x 6 |
|
Machine Measurements (mm) |
3050 x 1900 x1750 |
|
|
|
|
